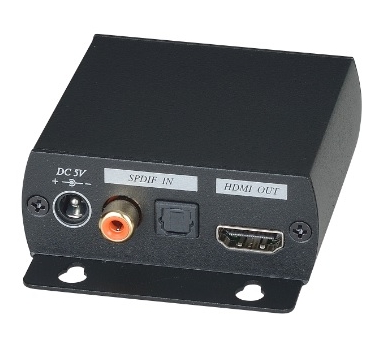

HDMI ARC (Audio Return Channel) / Digital Audio Converter
- As an ARC decoder/encoder
- Design to use for for AV receiver or TV without ARC function
- Encode digital audio to HDMI ARC output
Description
| ARC01 | |
| Video Input / Output | HDMI Type A |
| Digital Audio input / output | RCA 75Ω, TOSLINK |
| Temp. | Operation: 0℃ ~ 55℃, Storage: -20℃ ~ 85℃ |
| Humidity | up to 95% |
| Poser Supply | DC5V 1Amp |
| Power Consumption | 90mA (Typical) / 150mA (Max) |
| Dimension | 67x91x27 mm |
| Weight | 140 g |
