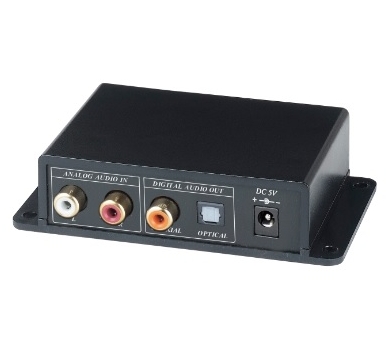

Analog / Digital Bi-directional Audio Converter
Back to list

Analog / Digital Bi-directional Audio Converter

  • Support digital audio and analog audio bi-directional conversion
  • Analog to digital audio support up to 48 KHz
  • Digital to audio support to 96 KHz
Description
AC01
Audio support sampling rate    Analog to Digital audio up to 48KHz
Digital to analog support 32K ~ 96KHz
LED LED x 3 (Green, Blue, Red)
Audio output connector  RCA x 3, TOSLINK x 1
Audio input connector  RCA x 3, TOSLINK x 1
Switch  Slide Switch x 1
Power Supply  DC5V 1A
Power Consumption  80mA (Typical) / 110mA (Max)
Temp. Operation: 0℃ ~ 55℃, Storage: -20℃ ~ 85℃
Humidity  up to 95%
Dimension  108x76x27 mm
 Weight 90 g
