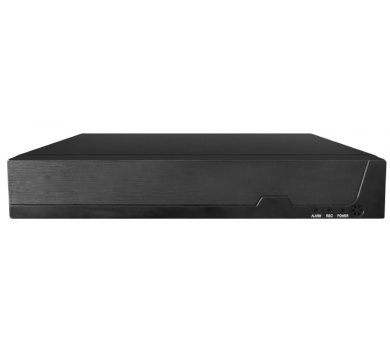

32CH 1080N H.265 4*HDD XVR
- Camera input: Max. 32CH / 4 x 6TB HDD
- Motion Detection / Supported Face & Humanoid Detection
- Support UTC, PTZ, Camera soft. updated / Dnamcid 3D DNR / P2P
Description
| CB-ADR-9232 (1080N) | |
| CH & Compression | 32CH H.265 / H.264 |
| Chipset / RAM | 16G DDR3 |
| Operation System | Embedded Linux |
| Operation Interface | Web / Operating in local GUI |
| Synchronous Preview | 32 |
| Multi Screen Display | 1/4/6/8/9/16/25/32 screen |
| CVBS / HD Input | AHD / CVBS / CVI / TVI / IPC |
| Resolution | VGA: Max. 1080P, HDMI: Max. 2K |
| Video Input Mode | Analog Digital Any Combination, Full network, (1080-N Analog +1080P Digital) |
| Audio Input | 1CH, RCA (Line in, 2Vp-p, 300Ω), Voice Intercom |
| VGA Output | 1CH, 1920x1080, 1280x1024, 1280x720 |
| HDMI Output | 1CH, 1920x1080, 1280x1024, 1280x720 |
| Audio Output | 1CH, RCA (Line out, 2Vp-p, 300Ω) |
| Audio Compression | G.711A |
| Two-Way Intercom | Supported |
| Coaxial audio | 32 |
| Preview | 32*5MN@12fps/32*1080N@25fps/32*720P@25fps |
| Code Capactiy | 32*5MN@12fps/32*1080N@25fps/32*720P@25fps |
| Decode Capacity | 32*5MN@12fps/32*1080N@25fps/32*720P@25fps |
| Video Mode | Manual > Alarm (Motion Detection) > Timing |
| Synchronous Playback | 16CH |
| Record Retrieval | Fast Playback, Browse Payback, Play by Time, Play by Event, Timeline Playback, Smart Playback |
| Face Detection | Supported |
| Humanoid Detection | Supported |
| Recording Mode | Manual, Schedule (Normal, Motion Detection, Alarm, Timing) |
| Motion Detection | 192(16x12) Testing Areas can be set for each Image, can set Multiple Sensitivity |
| UTC | Supported |
| PTZ | Supported |
| Camera Soft. Updated | Supported |
| Dynamic 3D DNR | Supported |
| Smart Phone | iOS, Android |
| Backup | USB Device |
| P2P / Cloud Storage | Support / Support Google Drive |
| CMS / Mobile App | IE / Web / PC Client Software / App |
| WEB | IE 8/10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above |
| SATA HDD Interface | 4*6TB HDD |
| Network Port | RJ45; 10M / 100M, Self-Adaptive Ethernet Interface |
| BNC Port | 16 |
| VGA Port | 1 |
| HDMI Port | 1 |
| CVBS Port | 1 |
| Audio Input / Output | 16CH Input / 1CH Output |
| Alarm Input / Output | 6CH Input / 1CH Output |
| Network Port | RJ45 10M / 100M Self-Adapt to Ethernet Interface |
| USB Port | 2 x USB 2.0 (Rear Panel) |
| RS-485 | 1*RS-485 |
| Remote Controller | Optional |
| Dimension | 254*215*42mm |
| Weight | 6.5kg (Not including HDD) |
| Power Supply | DC12V / 6A |
| Power Consumption | < 15W (without HDD, without POE) |
| Operation Temp. | -10°C~55℃ |
| Humidity | 10~95% |
| Certification | CE / FCC / RoHS |
| EMC | CE-EMC:2014/30/EU, EN55032:2015+AC: 2016, EN55035:2017 |
| FCC | FCC Part15 subpart B Procedure∶ ANSI C63.4-2014 |
| RoHS | ROHS: (EU) 2017/2012 IEC62321:2013 |
| ISO | ISO9001 |
