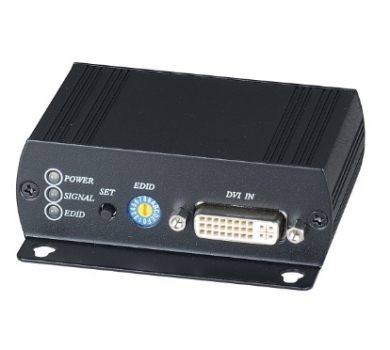

DVI EDID Emulator
Back to list

DVI EDID Emulator

  • Support 4 different EDID function: read, write, emulate, by pass
  • Built in rotary switch, support up to 12 sets default EDID setting
Description
EE01D
Support Resolution    3840 x 2400 @30Hz Max.
LED LED x 3 (Green, Blue, Red)
Video Input / Output DVI-I x 2 (Digital Only)
Power Source /
EDID Writing
Micro USB x 1
EDID Switch  16 Rotary Switch x 1 (0~9 & A~F)
EDID Read / Write  Tact Switch x 1
Power Consumption 2.5 W (Max)
Power Supply  DC5V 1A
Temp. Operation: 0℃ ~ 55℃, Storage: -20℃ ~ 85℃
Humidity  up to 95%
Dimension  88x85x30 mm
 Weight 185 g
