DVI & USB, / RS232 / Analog Audio CAT5e Extender
Back to list

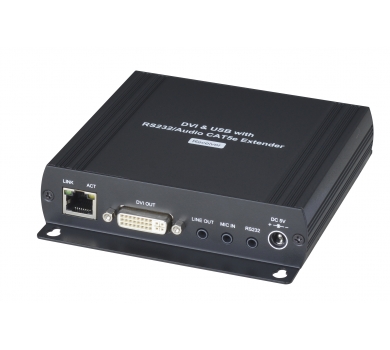

DVI & USB, / RS232 / Analog Audio CAT5e Extender

  • Extend DVI, USB, RS232, and Audio signals over one CAT5e/6 cable
  • Transmission range up to 140M over CAT6, 120M over CAT5e
  • DVI video resolution up to 1920 x 1200@60Hz
Description
DKM01B
Support Resolution    480i / 480p / 720p / 1080i / 1080p @24Hz, 25Hz, 30Hz, 50Hz, 60Hz
Transmission Distance  CAT5e: 150M / CAT6: 180M (Max)
USB Connector  USB Type B x 1
RS232 Connector  DB9 (Female) x 1
Video Input Connector  DVI-I x 1 (29 Pin) Digital Only
Video Loop Output Connector  DVI-I x 1 (29 Pin) Digital Only
Link Connector  RJ45 x 1
Audio Connector  3.5mm Phone Jack x 2 (10KΩ / 1Vpp)
IR Receiver (Internal) 30-60Khz / ±45° / 5M
IR Emitter (External) 3.5mm Stereo Phone Jack
Power Supply  DC5V 2A
Power Consumption  750mA (Typical) / 1000mA (Max)
Temp. Operation: 0℃ ~ 55℃, Storage: -20℃ ~ 85℃
Humidity  up to 95%
Dimension  167x105.5x40 mm
 Weight 470 g
