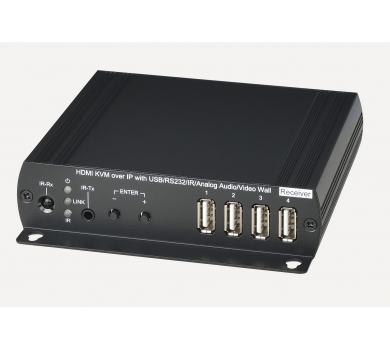

1080p HDMI KVM over IP - Receiver
- Extend and distribute 4K HDMI signal with USB, bi-directional RS232/IR, and analog audio signals over LAN
- Supports resolutions up to 1080p 60Hz FullHD
- HDCP 1.4 compliant
Description
| HKM02BT | HKM02BR | ||||
| Copper Distance | 150M (Use Network Switch Max 100M) | ||||
| HDMI Video Support | Up to 1080p, 1920x1200@60Hz | ||||
| HDCP Compliant | HDCP 1.4 | ||||
| HDMI Audio | Up to 7.1 LPCM 7.1 192Khz / Dolby TrueHD / DTS-HD MA / ATMOS, DTS:X | ||||
| HDMI In | HDMI Type A | X | |||
| HDMI Loop Output | HDMI Type A | X | |||
| HDMI Out | X | HDMI Type A | |||
| Analog Audio Input | Line In, 3.5mm Stereo Phone Jack | Mic In, 3.5mm Mono Phone Jack | |||
| Analog Audio Output | Line Out, 3.5mm Stereo Phone Jack | ||||
| USB | USB 2.0 Type B x 1 (Rear) | USB 1.1 Type A x 2 (Front) USB 2.0 Type A x 2 (Rear) | |||
| IR Receiver (Int) | 20~60KHz / ± 45 ° / 5M | ||||
| IR Emitter (Ext) | 3.5mm Stereo Phone Jack 20~60KHz / ± 45 ° / 5M | ||||
| RS-232 | DB9 Female | DB9 Male | |||
| (Not support hardware handshake) | |||||
| Ethernet | Gigabit RJ45 | ||||
| Power Consumption | 1350mA (Typical) | 900mA (Typical, No USB Device) | |||
| Power Supply | DC 5V / 2000mA | ||||
| Dimension | 125 x 140 x 30mm | ||||
| Weight | 380g | 390g | |||
| Certification | CE / FCC / RoHS | ||||
