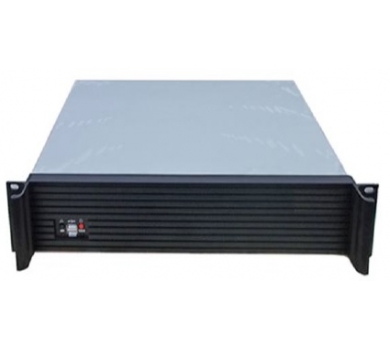

X86 Linux Based Video Management Server
- Max. Management 64pcs NVS / DVR / NVR
- Support dual monitors, 2 HDMI, 4K resolution
- Support H.264 / H.265 / Ultra H.265 Hardware decode
- Support Linux CMS (Campro NVMS) / Mac / Android / iOS / Campro NVSS Client
Description
| Model No. | CB-NVMS-8300 | ||||
| Main Processor | Intel Core i3-7100/8100 CPU | ||||
| Operating System | 64bit Linux OS | ||||
| Memory | 8GB | ||||
| Max Connections | 64 Device Max. 16384CH IPC | ||||
| Supported List | CB-NVMS-8XXX / Hybrid DVR / NVR | ||||
| Register Users | Register User: 1000, Support 16 Users on line at the same time | ||||
| Device Management | IPC, NVR, Decoder, Keyboard, Cloud Devices, Alarm Control Panel and Door Access Controller | ||||
| VCA Detection | Face Detection / Intrusion Detection / Movement Direction Detection / Missing Object Detection / Unattended Object Detection / Tripwire | ||||
| Alarm Trigger Record | 20,000 pictures, 2,000,000 messages | ||||
| Operation Logs | 200,000 | ||||
| Bandwidth | Incoming: 1024Mbps, Outgoing: 1024Mbps | ||||
| Video output | 2ch VGA + 1ch HDMI Sync Video Output, HDMI up to 4K resolution, Max. 64 Windows Group Display | ||||
| Display Split | 1/4/6/9/13/16/20/25/36/40/49/64 splits | ||||
| Output Resolution | Self Adapted, Supports 3840*2160, 1920*1080 / 1600*1050 / 1280*1024 / 1024*768 | ||||
| Tour Display | 64 Display groups with sequence supported | ||||
| Video type | Ultra H.265 / H.265 / H.264 | ||||
| Decording ability | 3ch@16MP or 6ch@8MP or 12ch@4MP or 25ch@1080P or 36ch@720P or 64ch@D1 or 100ch@HD1 | ||||
| Remote-Playback | 16CH Video & 1CH Audio Simultaneous play, single frame, lcon search, Record mode filter, Backup, Grab picture | ||||
| TV WALL | Support TV Wall Function | ||||
| Matrix | Virtual Matrix | ||||
| USB | 6 USB ports | ||||
| Ethernet | 2*1000Mbps RJ45 ports | ||||
| NIC Card | 2*NIC Card | ||||
| Hard Disk | 3 SATA Max. 16TB for each; Independent HDD rack | ||||
| Array Type | RAID5, RAID6 | ||||
| Power Supply | 100V~240V, 47~63Hz | ||||
| Power Consumption | Max. 200W | ||||
| Temperature / Humidity | 0°C~60℃ / 10~80% (non-condensation) | ||||
| Weight | 6kg | ||||
| Dimension | 400(W) x 440(D) x 88(H) mm; 2U | ||||
