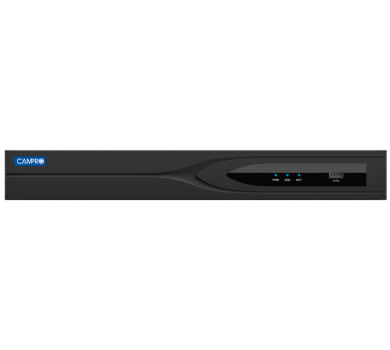

CB-NVR-9316P | |
CH & Compression | 16CH H.265 / H.264 |
Chipset / RAM | 1.5.5G DDR3 |
Operation System | Embedded Linux |
Operation Interface | Web / Operating in local GUI |
Synchronous Preview | 16 |
Multi Screen Display | 1/4/8/9/16 |
Input Bandwidth | 192Mbps (Up to 16CH 4K 8MP) |
Out Bandwidth | 192Mbps |
IPC Input | 16CH |
Audio Input | 1CH, RCA (Line in, 2Vp-p, 300Ω), Voice Intercom |
VGA Output | 1CH, 1920x1080, 1280x1024, 1280x720 |
HDMI Output | Standard 1.4b, 3840x2160, 1920x1080, 1280x1024, 1280x720 |
Audio Output | 1CH, RCA (Line out, 2Vp-p, 300Ω) |
Audio Compression | G.711A |
Audio Bit Rate | 64Kbps (16bit) |
IP CH Resolution | Main stream: Up to 3840*2160, Auxiliary stream: D1 |
Video Decoding | H.265+ / H.265 / H.264 |
Audio Decoding | G.711A / G711U / G726 |
Sync, Playback | Up to 16CH (Tag / Smart / External Search) |
Decoding Ability | 16CH*1080P@30fps / 4CH*4K@30fps |
Intelligent Analysis | AI by camera: Face Detection, Smart Motion Detection, Perimeter Protection, Perimeter Protection: Intrusion, Tripwire (support the classification of Human and Vehicle), Work with IPC support these functions and AI search |
Perimeter Detection | 16CH |
Face Detection | 16CH |
Object Detection | 16CH |
Smart Motion Detection | 16CH |
Recording Mode | Manual, Schedule(Normal, Motion Detection, Alarm, Intelligent) |
AI Search | Search by target classification (Human, Vehicle, Non Motor) |
Playback | 1. Play, Pause, Stop, Fast Forward, Fast Backward, Rewind, Play by Frame 2. Full Screen, Backup (cut/file), Partially Enlarge, Audio on/off |
Quick Access IPC | Support One Click adding IPC |
Alarm Linkage | Recording, Snap Shot, Buzzer, Log, Preset, Alarm Push, E-mail |
Bidirectional Talk | Two-way Voice Intercom |
Motion Detection | Zones: 396(22*18), Multi-level Sensitivity: level 1~6 |
Snap Shot | Support JPEG format (Support upload snapshot and video backup to third-party cloud service such as Dropbox, Google Drive) |
Smart Phone | iOS, Android |
Backup | USB Device |
P2P / Cloud Storage | Support / Support Google Drive |
CMS / Mobile App | IE / Web / PC Client Software / App |
Interoperability | ONVIF, SDK |
WEB | IE 8/10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above |
Network Protocol | DNS, DDNS, DHCP, FTP, HTTP, IPv4, IP Filter, NTP, ONVIF, P2P, PPPOE, RTP/RTSP, SMTP, SNMP,TCP/IP, UDP, UPnP, Auto Register |
3G Dongle | Support |
DDNS | Built in Free DDNS |
Remote Operation | Monitoring, PTZ Control, Playback, System Setting, File Download, Log Information |
SATA HDD Interface | 2 x 14TB HDD |
POE Port | 16 |
Network Port | RJ45; 10M / 100M / 1000M, Self-Adaptive Ethernet Interface |
VGA Port | 1 |
HDMI Port | 1 |
USB Port | 1 x USB 2.0 (Front Panel), 1 x USB 2.0 (Rear Panel) |
Dimension | 1U / 360*262*48mm |
Weight | 3kg (Not including HDD) |
Power Supply | AC110-240V±10%, 47Hz-63Hz, DC52V/4.6A (POE) |
Power Consumption | < 20W (without HDD, without POE) |
Operation Temp. | -10°C~55℃ |
Humidity | 10~95% |
Certification | CE / FCC / RoHS |
ISO | ISO9001 |
