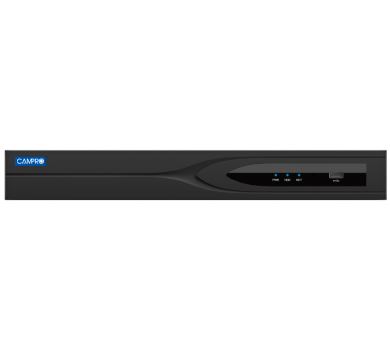

16CH 1U 2HDD Prime AI PoE NVR
Back to list

16CH 1U 2HDD Prime AI PoE NVR

  • Max. 256Mbps Incoming, 16CH 12MP IPC Input, ONVIF, 2*14TB HDD, 1*E-SATA, 16*PoE.
  • Support 4K HDMI Output, Up to 16CH for Playback, Support P2P, APP Alarm Push
  • AI by Camera: Face Detection, Intrusion, Tripwire, Object Detection, Smart Motion Detection
  • AI by NVR: Face Detection, Intrusion, Tripwire, Smart Motion Detection
Description
CB-NVR-9216P (Prime AI)
CH & Compression       16CH H.265 / H.264
Operation System  Embedded Linux
Operation Interface Web / Operating in local GUI
Intelligent Analysis
AI by Camera: Face Detection, Smart Motion Detection, Perimeter Protection,
Perimeter Protection: Intrusion, Tripwire (support the classification of Human and Vehicle), Work
with IPC support these functions and AI search
Perimeter Detection 16CH
Face Detection  16CH
Object Detection 16CH
Smart Motion Detection  16CH
Intelligent Analysis
AI by NVR: Face Detection, Smart Motion Detection, Perimeter Protection,
Perimeter Protection: Intrusion, Tripwire (support the classification of Human and Vehicle), Work
with IPC support these functions and AI search
Perimeter Detection  4CH
Face Detection  4CH
Face Recognition  N/A
Smart Motion Detection  4CH
Input Bandwidth  256Mbps
Out Bandwidth  256Mbps
IPC Input  16CH
Audio Input  1CH, RCA (Line in, 2Vp-p, 300Ω), Voice Intercom
VGA Output  1CH,1920*1080/1280*1024/1280*720/1024*768
HDMI Output  3840*2160/1920*1080/1280*1024/1280*720/1024*768
Audio Output  1CH, RCA (Line out, 2Vp-p, 300Ω)
Audio Compression  G.711A
Audio Bit Rate  64Kbps (16bit)
IP CH Resolution  12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 720P, D1
Video Decoding  H.265 (Main Profile@Level 5.0 High-tie) / H.264 (High Profile@Level 5.0)
Audio Decoding  G.711A / G711U / G726
Sync, Playback  Up to 16CH (Tag / Smart / External Search)
Decoding Capability 16CH*1080P@30fps / 4CH*4K@30fps
Synchronous Preview  16
Multi Screen Display  1 / 4 / 8 / 9 / 16
Record Mode  Manual, Schedule(Normal, Motion Detection, Alarm, Intelligent)
AI Search  Search by target classification (Human, Vehicle, Non-Motor Vehicle)
Backup  USB device
Playback
1. Play / Pause / Stop / Fast Forward / Fast Backward / Rewind / Play by frame
2. Full Screen / Backup (Cut / File), Partially Enlarge / Audio on/off
Network Protocol
HTTP, TCP/IP, IPv4, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP,
P2P, Auto Register
Mobile Phone Access iOS, Android
Interoperability ONVIF 22.12 (Profile S, Profile G, Profile T), CGI, SDK
Browser IE 8/10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
3G Dongle  Support
DDNS Built in Free DDNS
Remote Operation Monitoring, PTZ Control, Playback, System Setting, File Download, Log Information
SATA 2*HDD
Max Capacity  14TB for each
E-SATA 1*E-SATA
Network Port  RJ45*2, 10M / 100M / 1000M, Self-Adaptive Ethernet Interface
POE Port 16
VGA Port 1
HDMI Port 2
CVBS  N/A
USB Port  1*USB 3.0 (On Front Panel), 2*USB 2.0 (On Rear Panel)
RCA Input / Output  1CH In / 1CH Out
Alarm Input / Output 8CH In / 4CH Out
RS-232 1
RS-485 1
Recording Mode  Manual, Schedule(Normal, Motion Detection, Alarm, Intelligent)
Quick Access IPC Support One Click adding IPC
Alarm Linkage Recording, Snap Shot, Buzzer, Log, Preset, Alarm Push, E-mail
Bidirectional Talk  Two-way Voice Intercom
Motion Detection  Zones: 396(22*18), Multi-level Sensitivity: level 1~6
Snap Shot  Support JPEG format (Support upload snapshot and video backup to third-party cloud service such as Dropbox, Google Drive)
Smart Phone  iOS, Android
Backup  USB Device
P2P / Cloud Storage  Support / Support Google Drive
CMS / Mobile App IE / Web / PC Client Software / App
Interoperability  ONVIF, SDK
Dimension 1U / 360*312*48mm
Weight  3kg (Not including HDD)
Power Supply  DC12V / 3A
Power Consumption  < 20W (without HDD, without POE)
Operation Temp. -10°C~55℃
Humidity 10~95%
Certification  CE / FCC / RoHS
ISO  ISO9001
