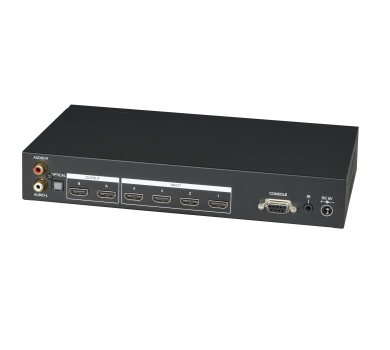

4 x 2 HDMI Matrix Switcher
- 4 x HDMI Video input to two 2 HDMI output Switcher
- Support HDMI 2.0, HDCP 2.2, 4K@60Hz 4:4:4 18Gbps 3D, HDR
- Support ARC audio return channel
Description
| HS42M-4K6G | ||
| HDMI Resolution | Up to 4096 x 2160/60Hz/4:4:4 (18Gbps), 3D, HDR | |
| HDMI Audio Support | Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA | |
| Video Input Interface | HDMI Type A x 4 | |
| Video Output Interface | HDMI Type A x 2 | |
| Digital Audio Connector | TOSLINK Type x 1 | |
| Analog Audio Connector | RCA Jack x 2 | |
| RS232 Input / Output Interface | DB9 x 1 (CONSOLE) | |
| IR Receiver Angle | ± 45 degree | |
| IR Receiver Distance | 5M | |
| Power Supply | DC 5V 2A | |
| Power Consumption | 6W | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 253 x 144 x 40 | |
| Weight g | 840 | |
| Certification | CE / FCC / RoHS | |
