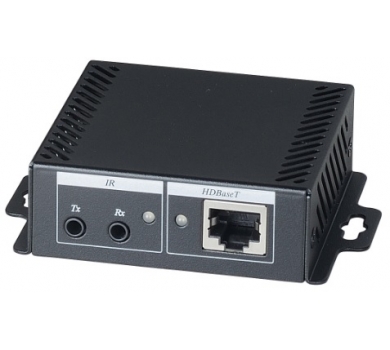

HDMI CAT5 Extender with IR / PoH
- Extends HDMI and IR signal over one CAT5/5e/6 cable
- Bi-directional IR, support 30-60kHz
- Max. Data Rate- 10.2Gbps
Description
| HE20EIPT | HE20EIPR | |
| Input / Output Interface | HDMI Type A x 1 | |
| HDMI Video Support | Up to 1080p@60Hz@48bits,3D,4096x2160@24Hz | |
| HDMI Audio Support | LPCM 7.1 192KHz / Dolby TrueHD / DTS-HD MA | |
| Distance | 60M by CAT5e/6, 70M by CAT6 | |
| HDBaseT Connector | RJ45 x 1 | |
| LED Indication | Green x 1, Blue x 3 | |
| IR Carrier Frequency | 30-60Khz | |
| IR Angle/Distance | T : ± 15° / R : ± 55° / 5M / Bi-directional | |
| Power Supply | DC 24V 1.25A | X |
| Power Consumption | Max 11.4W, Low Power 1.8W | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 67 x 95 x 27 | |
| Weight g | 155 | 165 |
| Certification | CE / FCC / RoHS | |
