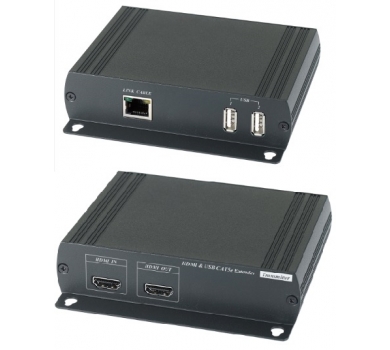

HDMI & USB Keyboard Mouse CAT5e Extender
- Extends HDMI and USB keyboard mouse signal over one CAT5e/6 cable
- Support resolutions full HD up to 1920 x 1080p@60hz
- Transmission range up to 150M over CAT5e, 160M over CAT6
Description
| HKM01ET | HKM01ER | |
| Support Resolution | 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 720x480@60Hz, 720x576p@50Hz, 1280x720p@60Hz, 1280x720p@50Hz, 1920x1080i@60hz, 1920x1080i@50Hz, 1920x1080p@60Hz | |
| Transmission Distance | CAT.5e : 150M / CAT.6 : 160 (Max) | |
| HDMI Connector | HDMI Type A x 2 | HDMI Type A x 1 |
| USB Connector | USB Type B x 1 | USB Type A x 2 |
| Link Connector | RJ45 x 1 | |
| Power Supply | DC 5V 2A | |
| Power Consumption | 1.2Amp (Max.) | 0.8Amp (Max.) |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 125 x 125 x 30 | 125 x 125 x 30 |
| Weight g | 355 | 350 |
| Certification | CE / FCC / RoHS | |
