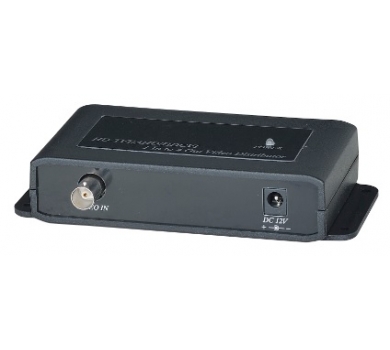

HD-TVI / AHD / HD-CVI 1 Input 4 Output Video Distributor
- 1 video input to 4 video output
- Support HD-TVI, AHD, HDCVI, 960H, NTSC, PAL video signal
Description
| CD104HD | ||
| Video Input Channel | BNC x 1, 1 Vp-p, 75 Ohm | |
| Video Output Channel | BNC x 4, 1 Vp-p, 75 Ohm | |
| Video Bandwidth | 100MHz 0.1dB Gain Flatness | |
| Power Supply | DC 12V 500mA | |
| Power Consumption | 110 mA (Max) | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 138 x 85.6 x 29.5 mm | |
| Weight | 140 g | |
| Certification | CE / FCC / RoHS | |
