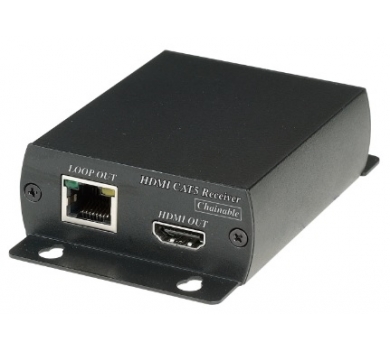

HDMI CAT5 Receiver - Chainable Function
- Work with HE01ST as receiver for extra remote HDMI display equipment
- Transmission range up to 70M at 1080i, 30M at 1080p resolution
Description
| HE01SLR | ||
| Resolution | 480i/p, 720p, 1080i/p @ 24/50/60Hz | |
| Distance | Cat.5e 60M @1080i, Cat.5e 30M @1080p | |
| HDMI Connector | HDMI Type A | |
| Link Connector | RJ-45 | |
| Loop Out Connector | RJ-45 | |
| Power Supply | DC 5V / 2Amp | |
| Power Consumption | 1150mA (Max) | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension / Weight | 110 x 67 x 27 mm / 160g | |
| Certification | CE / FCC / RoHS | |
