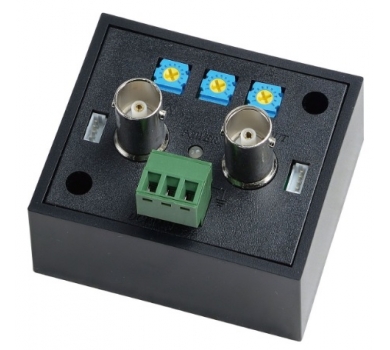

HD-TVI / AHD / HD-CVI Video Amplifier
- Support AHD1080p/720p 800M
- Support HD-TVI 1080p/720p 600M
- Support HD-CVI 1080p/720p 800M
Description
| CA101HD | ||
| Video Format | HD-TVI / AHD / HD-CVI | |
| Video Input | BNC 75 Ohms | |
| Video Output | BNC 75 Ohms | |
| Distance | AHD / HD-CVI: 800M@1080p, HD-TVI: 600M@1080p | |
| Power Supply | DC 12V / 500mA | |
| Power Consumption | 150mA (Max) | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 57.8 x 49.2 x 41.7 mm | |
| Weight | 70 g | |
| Certification | CE / FCC / RoHS | |
