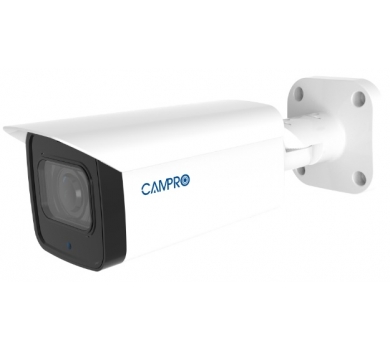

5MP IR Smart Dual Light Network Bullet Camera
- 1/2.7”Lite AI II 5MP Smart Dual Light IR D&N Bullet Camera
- Smart Motion Detection
- Perimeter Protection: Intrusion, Tripwire (Support the Classification of Vehicle, Human and Non-Motor)
Description
| CB-RD503P-AZ | |||||
| Sensor | 1/2.7" Progressive CMOS Image Sensor | ||||
| Max. Resolution | 5MP, 2880(H)*1620(V) | ||||
| RAM & Flash | 256Mb RAM / 128Mb ROM | ||||
| Minimum Illumination | 0.005 Lux (Color), 0.0005Lux (B/W), 0Lux (IR ON) | ||||
| Shutter Speed | 1/3 s to 1/100,000 s | ||||
| Day / Night | Auto / Dual IR-Cut filter / D/N Sensitive Switch / Mixed Mode Swith | ||||
| Illumination Distance Range | IR Light: Max. 60M, Warm Light: Max. 50M | ||||
| Illuminator Control | Auto / Manual | ||||
| Smart IR | Supported | ||||
| S/N Ratio | ≥ 56dB | ||||
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | ||||
| Lens | 2.7-13.5mm Motorized Auto Focal Lens | ||||
| Max. Aperture Ratio | F No. 1.6(W) ~ 3.3 (T) | ||||
| Min. Object Distance | 0.3M~INF(W), 1.5M~INF(T) | ||||
| Lens Mount | M12 | ||||
| Max. Aperture | F1.6 | ||||
| Iris Type | Auto Iris | ||||
| Lens | 2.7~13.5mm | ||||
| 109°~ 30° | |||||
| 56°~ 17° | |||||
| 131°~ 35° | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.7mm | 44.1 | 17.7 | 8.8 | 4.4 | |
| 3.6mm | 58.9 | 23.6 | 11.8 | 5.9 | |
| 6.0mm | 82.8 | 33.1 | 16.6 | 8.3 | |
| 13.5mm | 144.8 | 57.9 | 29 | 14.5 | |
| Face Detection | N/A | ||||
| Smart Motion Detection | Supported | ||||
| Perimeter Protection | Intrusion, Tripwire (support the classification of Human and Vehicle & Non Motor) | ||||
| Object Detection | N/A | ||||
| People Counting | N/A | ||||
| Heat Map | N/A | ||||
| AI Search | Work toghether with NVR | ||||
| Max Resolution | 5MP: 2880*1620@25/30fps | ||||
| Stream Capability | 3 Streams | ||||
| Video Frame Rate | Main Stream: 5MP@1fps–25/30fps, Sub Stream: D1@1fps–25/30fps, Third Stream: 720P@1fps–25/30fps | ||||
| Video Compression | H.265, H.264H, H.264M, H.264B | ||||
| Smart Compression | H.265+, H.264H+, H.264M+, H.264B+ | ||||
| Bit Rate Control | CBR / VBR | ||||
| Video Bit Rate | H.265: 3 Kbps~20480 Kbps / H.264: 3 Kbps~20480 Kbps | ||||
| U-code | Supported | ||||
| Scalable Video Coding (SVC) | H.265 and H.264 Encoding (H.265+ (Ultra H.265)/H.265/H.264+/H.264/MJPEG) | ||||
| OSD | Minimum 4 OSDs | ||||
| Day/Night | Color / B/W | ||||
| BLC | BLC Supported | ||||
| HLC | HLC Supported | ||||
| FLC | FLC Supported | ||||
| WDR | True WDR, ≥120dB | ||||
| White Balance | Auto / Lock White Balance / Fluorescent Lamp / Filament Lamp / Fluorescent Lamp / HM | ||||
| Gain Control | Auto / Manual | ||||
| Noise Reduction | 3D NR (Auto / Manual) | ||||
| Motion Detection | OFF/ON (4 Areas, Rectangular) | ||||
| Image Rotation | Normal / Vertical / Horizontal / 0° / 90° / 180° | ||||
| Mirror | Supported | ||||
| Privacy Mask | Up to 4 Areas (programmable polygon privacy masks) | ||||
| Audio Encoding | G.711A / G.711Mu / G.726 / G.726ASF | ||||
| Audio Bite Rate | Minimum 64 Kbps or Higher | ||||
| Reduce Echo | Supported | ||||
| Noise Filtering | Supported | ||||
| Built-in MIC | Supported | ||||
| Built-in Speaker | N/A | ||||
| Two-way Audio | N/A | ||||
| Other Audio Function | N/A | ||||
| Arming / Disarming | Supported | ||||
| Sound Alarm | Optional | ||||
| Light Alarm | Supported | ||||
| Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error | ||||
| Linkage | FTP / Memory Card E-mail, Notify Surveillance Center, Trigger Recording, Trigger Capture | ||||
| Snapshot | Support JPEG format | ||||
| Security Features | Password, Watermark | ||||
| OSD | Channel Name, Data & Time, Image Overlay | ||||
| Storage | Support FTP Storage | ||||
| LAN Ports | RJ45*1, 10M/100M Base-T | ||||
| Network Protocol | DHCP, DNS, DDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, ONVIF, P2P, PPPOE, QoS, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP, 802.1X | ||||
| Protocol | ONVIF / CGI / P2P | ||||
| Simultaneous Live View | Up to 16CH | ||||
| API | Open Network Video Interface Profile S, G, T, SDK | ||||
| User/Host | 20 User (Total bandwidth: 80M), 2 user levels: administrator and user | ||||
| Security | Password protection, complicated password, HTTPS Encryption, 802. 1X Authentication (EAP-MD5), Watermark, Basic and Digest, Authentication for HTTP/HTTPS, WSSE and Digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security Audit log, TLS 1.2, TLS 1.3, Host Authentication (MAC address) | ||||
| Video Management Software | IE / Web / PC Client Software / App | ||||
| Mobile Client | iOS, Android | ||||
| Web Browser | Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ | ||||
| Smooth Streaming | Yes | ||||
| Audio Input / Output | N/A | ||||
| Alarm Input / Output | N/A | ||||
| Storage | Support Max. 256G Micro SD / SDHC / SDXC(FAT32), FTP | ||||
| Case | Metal, Indoor & Outdoor | ||||
| Protection Level | IP67, IK10 | ||||
| Temp. / Humidity | -30°C ~ 60℃ / Less than 95% RH | ||||
| Storage Conditions | -40°C ~ 60℃ | ||||
| Power Consumption | Basic: 2.5 W; Max. 6.2W | ||||
| Power Supply | DC12V 2A / POE (IEEE802.3af) | ||||
| Lightning Protection | Power, Network, POE all Lightning Protection, Rating Surge Voltage: 6KV(10/700μs) | ||||
| Dimenstion | 244 (L)*76 (W)*77 (H) mm / 0.85KG | ||||
| Certification | CE / FCC / RoHS | ||||
| ISO | ISO9001 | ||||
