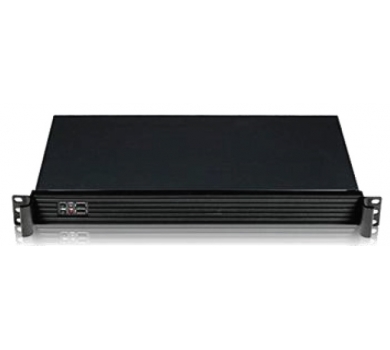

Virtual Matrix Decoding Device
- Intel celeron 3855U CPU
- 64bit Linux OS software Platform
- Video Output: 2 HDMI: 1920*1080 / 3840*2160 (4K resolution)
Description
| Model No. | CB-VMD-8102 | ||||
| Hardware platform | Intel Celeron 3855U CPU | ||||
| Software platform | 64bit Linux OS | ||||
| Control Mode | Graphical User Interface, Mouse operate, Network | ||||
| Video Frame Rate | PAL: 1-25fps, NTSC: 1-30fps | ||||
| Video Output | 2 HDMI: 1920*1080 / 3840*2160 (4K resolution) | ||||
| Display | Each monitor supports 1/4/9/13/16 split view | ||||
| Video Decoding | 5ch@8MP or 9ch@4MP or 13ch@1080P or 18ch@720P or 32ch@D1 | ||||
| Display mode | (1). 2 HDMI display 1CH 8MP both (2). 2 HDMI display 4CH 4MP both (3). 2 HDMI display 9CH 720P both (4). 2 HDMI display 16CH D1 both (5). 1 HDMI display 4ch 8MP, another HDMI display 1ch 8MP (6). 1 HDMI display 4ch 1080P, another HDMI display 9ch 1080P | ||||
| Power Supply | 12V / 5A | ||||
| Ethernet | 1-RJ-45 10/100/1000 Mbps self-adaptive | ||||
| USB | 4*USB 2.0 | ||||
| Weight | 6.5kg | ||||
| Dimension | 482(W) x 250(D) x 44.5(H) mm; 1U Case | ||||
