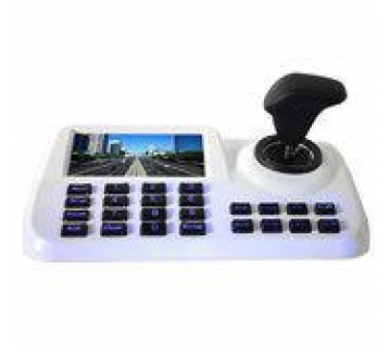

3-Axis Network Keyboard Controller
- 3-Axis Joystick Keyboard
- 5\\" Colorful LED Display
- Support USB and HDMI output / ONVIF 2.4 compatible
Description
| CB-DK106 | |
| ONVIF | 2.4 |
| Control Way | Network |
| Communication Port | 1 x RJ45, 2 x RS485 (Reserved), 1 x DC12V Power, 1 x HDMI, 1 x USB |
| Buad Rate | 9600 bps |
| Display Screen | 5" LED |
| Joystick | Vector variable speed joystick |
| Control Camera Quantity | No Limited (single screen display) |
| OSD Menu | English |
| Operating Humidity | ≤90% Non Condensing |
| Operating Temperature | -20°C ~ 55°C |
| Power Supply | DC12V / 2000mA |
| Product size | 260 x 160 x 48mm |
| Weight | 1.0KG (N.W), 1.5KG (G.W) |
| Certification | CE / FCC / RoHS |
