HD-TVI / AHD / HDCVI / CVBS Video & Power Transceiver
- Transmit HD-TVI / AHD / HDCVI / CVBS video and power (2 pairs) over one CAT5e cable

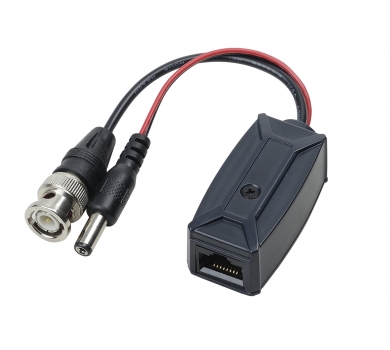

- Include 2 units: 1 x RJ45 to BNC with DC power plug, 1 x RJ45 to BNC with DC power jack
- Eliminate coaxial & power cable
Description
| TTP111HDP-L | TTP111HDPJ-L | |
| Video Input / Output Terminals | BNC x 1 (1 Vp-p, 75 Ohm) | |
| Video Output / Input Terminals | RJ45 x 1 (100 Ohm) | |
| Power | DC-PLUG | DC-JACK |
| Bandwidth | 50Hz ~ 60MHz (-3dB) | |
| Transmission Distance | 1080P: HD-TVI 250M, AHD 250M, HDCVI 300M 4MP / 5MP / 4K: HD-TVI 200M, AHD 200M, HD-CVI 200M CVBS: 400M | |
| ESD protection | 30 KV(Air), 15 KV(Contact) ; IEC 61000-4-2 compliant | |
| EFT protection | 40A (5/50ns) ; IEC 61000-4-4 compliant | |
| Lighting protection | 2A (8/20μs) ; IEC 61000-4-5 compliant | |
| Surge Protection Attack Time | < 1 nS | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension / Weight | 69 x 25 x 20.7 mm + 120mm pigtail cable / 45g | |
| Certification | CE / FCC / RoHS | |
