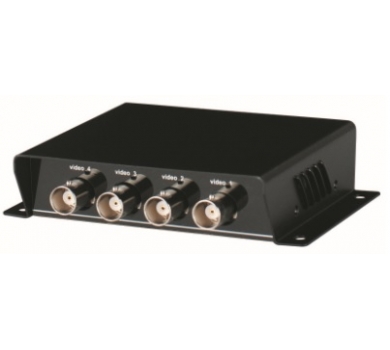

4CH HD-CVI / TVI / AHD HD Video Transceiver (Balun)
- 4CH UTP Video Transceiver, send 4 HD camera signal over one CAT5e / CAT6 cable
- To send HD-CVI / AHD signal up to 400M over UTP cable
- To send HD-TVI signal up to 250M over UTP cable
Description
| TTP414HD | ||
| Video Input / Output | 1V p-p, 75 Ohms | |
| RJ45 Output | 8 Pin Terminal (100 Ohm) / RJ45 | |
| Cable | CAT5e/CAT6 UTP | |
| Bandwidth | 50Hz ~ 60MHz (-3dB) | |
| Transmission Distance | 720P: HDCVI 400M, AHD 400M, HD-TVI 250M 1080P: HDCVI 400M, AHD 250M, HD-TVI 250M | |
| Power | X | |
| ESD protection | 30 KV(Air), 15 KV(Contact) ; IEC 61000-4-2 compliant | |
| EFT protection | 40A (5/50ns) ; IEC 61000-4-4 compliant | |
| Lighting protection | 2A (8/20μs) ; IEC 61000-4-5 compliant | |
| Surge Protection Attack Time | < 1 nS | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension / Weight | 110 x 80.6 x 26.3mm / 195g | |
| Certification | CE / FCC / RoHS | |
