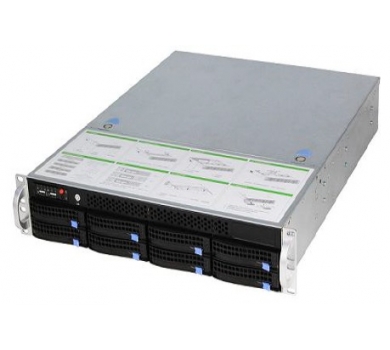

128CH Ultra 4K 8HDD NVR
- Support H.264 / H.265 Hardware GPU decode
- Support Linux CMS (Campro NVMS) / Mac / Android / iOS / Campro NVSS Client
- Support Software RAID5, RAID6 Storage
- Support Hardware Watchdog Download
Description
| Model No. | CB-NVSS-8708-128 | CB-NVSS-8708-128R | |||
| Main Processor | Intel Core i7-8700 CPU | ||||
| Operating System | 64bit Linux OS | ||||
| SSD | 64G mSata SSD | ||||
| Memory | 16GB | ||||
| Decoding Format | Ultra H.265 / H.265 / H.264 | ||||
| Bandwidth | Incoming: 1024Mbps, Outgoing 1024Mbps | ||||
| IP CH Resolution | Main stream: Up to 4618 x 3464, Auxiliary stream: D1 | ||||
| Frame Rate | NTSC@30fps, PAL@25fps | ||||
| Recording | 128ch@16MP/12MP/8MP/5MP/4MP/3MP/2MP/720P | ||||
| Preview | 3ch@16M or 6ch@8M/5M or 12ch@4M/3M or 20ch@1080P or 36ch@720P or 64ch@D1 | ||||
| Playback | 3ch@16M or 6ch@8M/5M or 12ch@4M/3M or 16ch@1080P/720P/D1 | ||||
| Audio | 1ch audio & 1ch Mic in, 1ch audio out, 1ch RCA (Line in, 2Vp-p, 1Kohm) | ||||
| Audio Compression | G.711U / G.711A / G.726 (64Kbps) | ||||
| Bidirectional Talk | Support: 1CH, RCA (Line in, 2Vp-p, 1Kohm) | ||||
| Alarm Input / Output | 1CH Input / 1CH Output | ||||
| Recording Mode | Manual, Schedule(Continuous, Motion detection, Sensor Alarm), Stop | ||||
| Alarm Recording | Motion Detection, External Alarm | ||||
| Backup Mode | Network Download / USB HDD / Mobile DVD | ||||
| Video output | 1ch VGA + 2ch HDMI + 1ch DP, HDMI output 4K Output | ||||
| Multi-split Display | Main: 1/4/6/9/13/16/20/25/33/36/40/49/64/81/100/121/144 splits, sub: 1/4/6/9/13/16 split | ||||
| HDMI/VGA Output | 3840*2160(HDMI) / 1920*1080 / 1680*1050 / 1440*900 / 1280*1024 / 1024*768 | ||||
| Snap Shot | Support JPEG format | ||||
| Client Soft / Mobile App | IE / Web / CAMPRO NVSS / Campro NVSS Client APP | ||||
| P2P | Support IOS / Android / PC | ||||
| DDNS | Built in Free DDNS | ||||
| Network Protocol | TCP / IP, UDP, HTTP, RTP / RTSP | ||||
| Network Function | DDNS, DHCP, FTP, iSCSI, NFS, NTP, PPPOE, SADP, SNMP, SMTP, SNTP, UPnP, P2P | ||||
| VCA | Face Detection / Intrusion Detection / Movement Direction Detection / Missing Object Detection / Unattended Object Detection / Tripwire | ||||
| Performance | Max deal 10pcs Face per Second | ||||
| Face Detect Camera | Support 2pcs input | ||||
| Face Data Base | 5'000 | ||||
| Interface | 2 RJ-45 ports (1000M) | ||||
| Power Supply | 400W, 47-63Hz, 100~240VAC | 450W Redundancy Power, 47-63Hz, 100~240VAC | |||
| Hard Disk | 8 SATA, Max. 16TB for each; Independent HDD Rack, Support Hot Swap, RAID storage | ||||
| Array Type | RAID5, RAID6 | ||||
| USB | 6 USB ports | ||||
| Temperature / Humidity | 0°C~60℃ / 10~85% (non-condensation) | ||||
| Weight | 12kg | ||||
| Dimension | 560(W) x 440(D) x 88(H) mm; 2U Case | ||||
