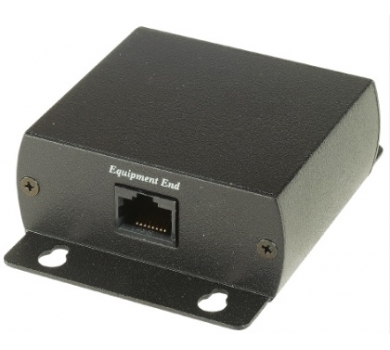

Network Surge Protector
- Performs a different function than grounding requirements
- Protects equipment from high voltage surges from nearby lightning strikes
- Two stage protection: under 100ns - 90V, over 100ns - 12V
Description
| SP006 | ||
| Surge Protection Attack Time | 1 ns | |
| Maximum Surge Voltage | 4 KV | |
| Surge Life | 300 surges of 100Amps | |
| Normal Resistance Across Coax | 10,000 MΩ | |
| Surge Resistance | Approx. 0Ω | |
| Band Pass | 0~1 GHZ | |
| Power Passing Capability | AC / DC 130V, 65 Vrms at10 A | |
| Insertion Loss | Less than 0.2 dB | |
| Return Loss (100 ohms) | 16dB | |
| Connectors | RJ45 | |
| Dimension mm | 67 x 87 x 27 | |
| Weight g | 126 | |
| Certification | CE / FCC / RoHS | |
