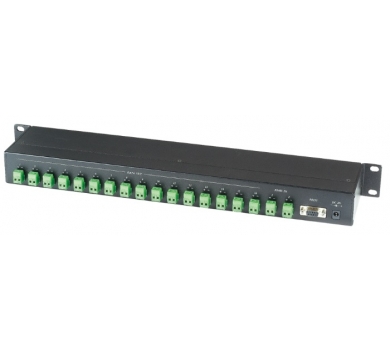

RS485 Distributor 1 Input 16 Output In 1U Rack Mounting Panel
- Input option: 1 x RS232, 2 x RS485
- Output: 16 x RS485, each channel connection range up to 1200M by twisted pair cable
Description
| RS016 | ||
| Data Input | RS232 / RS485 (DB9x1, 2 pin terminal block) | |
| Data Output Port (2 pin terminal block) | 16 Port | |
| Transmission Distance | 1.2km | |
| Data Output Signal | RS485 | |
| Power Supply | 12 VDC 500mA | |
| Power Consumption | 350mA | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 70°C, Humidity: up to 95% | |
| Material | Metal Black | |
| Dimension mm | 483 x 100 x 44 (1U) | |
| Weight g | 1160 | |
| Certification | CE / FCC / RoHS | |
