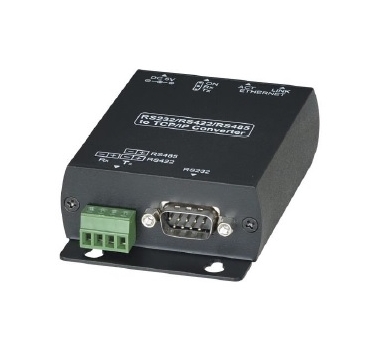

RS232 / RS422 / RS485 to Ethernet (TCP / IP) Converter
- RS232: standard DB9 connectors
- Support Data Baud rate: 1200 ~ 115200 bps
- Support three operation mode: TCP Server, TCP Client, UDP Mode
Description
| RS007 | |
| TCP/IP Ethernet | RJ-45 Connector x 1 |
| RS232 Interface | DB9 Male x 1 |
| RS485/RS422 Interface | Terminal Block 4 Pin x 1 |
| Operation Mode | TCP Server, TCP Client, UDP Mode |
| Network | 10/100 Mbps |
| Distance | Ethernet Cable 100M (Max) |
| Data Baud Rate | 1200 ~ 115200 bps |
| Modem Control Function | CTS, RTS, DSR, DTR, RI and DCD |
| LED Indication | Power: Green, RX TX: Blue Red, RJ45: Green, Orange |
| Poser Adapter | DC5V 1Amp |
| Power Consumption | 3W (Max) |
| Temperature | Operation: 0 ~ 70°C, Storage: -20 ~ 85°C, Humidity: up to 95% |
| Dimension | 67 x 110 x 27 mm |
| Weight | 180 g |
