4K HDMI KVM over IP - Receiver
Back to list

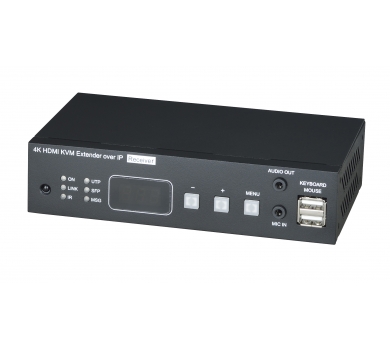

4K HDMI KVM over IP - Receiver

  • Extend and distribute 4K HDMI signal with USB, bi-directional RS232/IR(Infrared), and analog audio signals ove...
  • Supports resolutions up to 4K 30Hz 4:4:4
  • HDCP 2.2 compliant
Description
  HKM02BT-4K HKM02BPT-4K HKM02BR-4K HK02BPR-4K
Copper Distance  150M (Use Network Switch Max 100M)
HDMI Video Support  Up to 4K UHD 4:4:4 @30Hz
HDCP Compliant  HDCP 2.2
HDMI Audio  Up to 7.1 LPCM 7.1 192Khz / Dolby TrueHD / DTS-HD MA / ATMOS, DTS:X
HDMI In HDMI Type A  X
HDMI Loop Output  HDMI Type A  X
HDMI Out  X HDMI Type A
Analog Audio Input  Line In, 3.5mm Stereo Phone Jack  Mic In, 3.5mm Mono Phone Jack
Analog Audio Output  Line Out, 3.5mm Stereo Phone Jack
USB USB 2.0 Type B x 1 (Rear) USB 1.1 Type A x 2 (Front)
USB 2.0 Type A x 2 (Rear)
IR Receiver (Int & Ext) /
IR Emitter (Ext)
3.5mm Stereo Phone Jack 20~60KHz /  ± 45 ° / 5M
RS-232  DB9 Female DB9 Male
  (Not support hardware handshake)
Ethernet Gigabit RJ45
Fiber SFP
Power Consumption  600mA (Typical) 500mA (Typical, No USB Device)
Power Supply   DC 12V / 1500mA X DC 12V / 1500mA X
PoE Support  X 802.3af X 802.3af
Dimension  210 x 123 x 40 mm   167 x 103 x 40 mm
Weight 680g  500g
Certification  CE / FCC / RoHS
