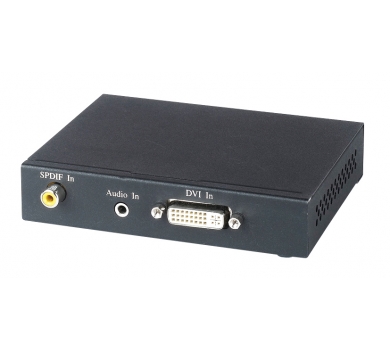

DVI & Audio to HDMI Converter
- Support HDMI 1.3, compatible HDCP 1.4
- DVI 1.0 compliant
- Built in EDID and EDID learning function
Description
| DH01 | ||
| Resolution | 1080P@60Hz Max | |
| Vido Bandwidth | 2.25 Gbps | |
| LED | LED Green x 1, LED Blue x 1 | |
| Video Input | DVI-I (Support DVI-D only) x 1 | |
| Audio Input | RCA x 1, 3.5mm phone jack x 1 | |
| Video Output | HDMI x 1 | |
| Switch | 2 Pin Dip Switch x 1 | |
| Power Consumption | 2.5W (Max) | |
| Power Supply | DC 5V / 1A | |
| Temperature | Operation: -10 ~ 45°C , Storage: -30 ~ 70°C, Humidity: up to 95% | |
| Dimension mm | 88 x 102 x 30 | |
| Weight g | 210 | |
| Certification | CE / FCC / RoHS | |
