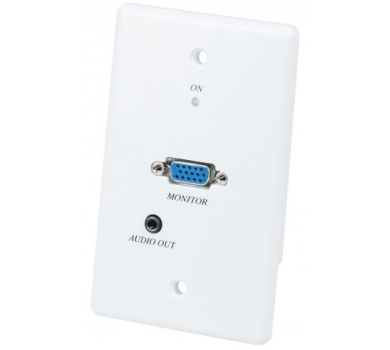

Wall Plate Hi Resolution VGA CAT5 Extender with Stereo Audio
- Identical to HE01HA, but wall plate type
- Wall Plate outer dimension: 70 x 115
- Compatible with metal box type VE01HA
Description
| VE01HAT | VE01HAR | |
| VGA Connector | DB15 x 1 (RGB Analog 0.7 Vp-p 75 Ohms) | |
| Audio Connector | Stereo Phone Jack 3.5mm x 1 (2Vp-p Max 10K Ohms) | |
| Video bandwidth | 700 MHz, -3dB | |
| Data Link | RJ45 x 1 | |
| DC Jack | Ø2.0 mm x 1 | x |
| Power Supply | DC 12V / 500mA | x |
| Power Consumption | 400mA (Max) | x |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 67 x 87 x 27 | |
| Weight g | 140 | |
| Certification | CE / FCC / RoHS | |
