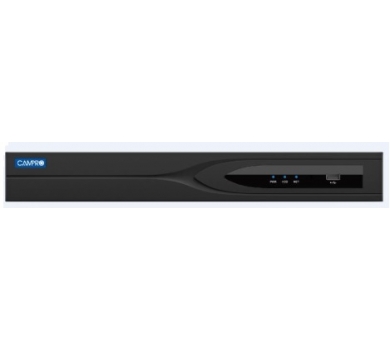

8CH 1U 2HDD Lite AI PoE NVR
- Max. 96Mbps Incoming, 8CH 12MP IPC Input, ONVIF, 2*14TB HDD, 8*PoE.
- Support 4K HDMI Output, Up to 8CH for Playback, Support P2P, APP Alarm Push
- AI by Camera: Face Detection, Intrusion, Tripwire, Object Detection, Smart Motion Detection
Description
| CB-NVR-9208P (Lite AI) | |
| CH & Compression | 8CH H.265 / H.264 |
| Operation System | Embedded Linux |
| Operation Interface | Web / Operating in local GUI |
| Intelligent Analysis | AI by Camera: Face Detection, Smart Motion Detection, Perimeter Protection, Perimeter Protection: Intrusion, Tripwire (support the classification of Human and Vehicle), Work with IPC support these functions and AI search |
| Perimeter Detection | 8CH |
| Face Detection | 8CH |
| Object Detection | 8CH |
| Smart Motion Detection | 8CH |
| Input Bandwidth | 96Mbps |
| Out Bandwidth | 96Mbps |
| IPC Input | 8CH |
| Audio Input | 1CH, RCA (Line in, 2Vp-p, 300Ω), Voice Intercom |
| VGA Output | 1CH,1920*1080/1280*1024/1280*720/1024*768 |
| HDMI Output | 3840*2160/1920*1080/1280*1024/1280*720/1024*768 |
| Audio Output | 1CH, RCA (Line out, 2Vp-p, 300Ω) |
| Audio Compression | G.711A |
| Audio Bit Rate | 8Kbps (16bit) |
| IP CH Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 720P, D1 |
| Video Decoding | H.265 (Main Profile@Level 5.0 High-tie) / H.264 (High Profile@Level 5.0) |
| Audio Decoding | G.711A / G711U / G726 |
| Sync, Playback | Up to 8CH (Tag / Smart / External Search) |
| Decoding Capability | 4CH*1080P@30fps / 1CH*4K@30fps |
| Synchronous Preview | 8 |
| Multi Screen Display | 1 / 4 / 8 / 9 |
| Record Mode | Manual, Schedule(Normal, Motion Detection, Alarm, Intelligent) |
| AI Search | Search by target classification (Human, Vehicle, Non-Motor Vehicle) |
| Backup | USB device |
| Playback | 1. Play / Pause / Stop / Fast Forward / Fast Backward / Rewind / Play by frame 2. Full Screen / Backup (Cut / File), Partially Enlarge / Audio on/off |
| Network Protocol | HTTP, TCP/IP, IPv4, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, Auto Register |
| Mobile Phone Access | iOS, Android |
| Interoperability | ONVIF 22.12 (Profile S, Profile G, Profile T), CGI, SDK |
| Browser | IE 8/10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above |
| 3G Dongle | Support |
| DDNS | Built in Free DDNS |
| Remote Operation | Monitoring, PTZ Control, Playback, System Setting, File Download, Log Information |
| SATA | 2*HDD |
| Max Capacity | 14TB for each |
| E-SATA | N/A |
| Network Port | RJ45*2, 10M / 100M / 1000M, Self-Adaptive Ethernet Interface |
| POE Port | 8 |
| VGA Port | 1 |
| HDMI Port | 1 |
| CVBS | 1 |
| USB Port | 1*USB 2.0 (On Front Panel), 1*USB 2.0 (On Rear Panel) |
| RCA Input / Output | 1CH In / 1CH Out |
| Alarm Input / Output | 8CH In / 4CH Out |
| RS-232 | N/A |
| RS-485 | 1 |
| Recording Mode | Manual, Schedule(Normal, Motion Detection, Alarm, Intelligent) |
| Quick Access IPC | Support One Click adding IPC |
| Alarm Linkage | Recording, Snap Shot, Buzzer, Log, Preset, Alarm Push, E-mail |
| Bidirectional Talk | Two-way Voice Intercom |
| Motion Detection | Zones: 396(22*18), Multi-level Sensitivity: level 1~6 |
| Snap Shot | Support JPEG format (Support upload snapshot and video backup to third-party cloud service such as Dropbox, Google Drive) |
| Smart Phone | iOS, Android |
| Backup | USB Device |
| P2P / Cloud Storage | Support / Support Google Drive |
| CMS / Mobile App | IE / Web / PC Client Software / App |
| Interoperability | ONVIF, SDK |
| Dimension | 1U / 360*262*48mm |
| Weight | 3kg (Not including HDD) |
| Power Supply | DC48V / 1.875A |
| Power Consumption | < 7W (without HDD, without POE) |
| Operation Temp. | -10°C~55℃ |
| Humidity | 10~95% |
| Certification | CE / FCC / RoHS |
| ISO | ISO9001 |
