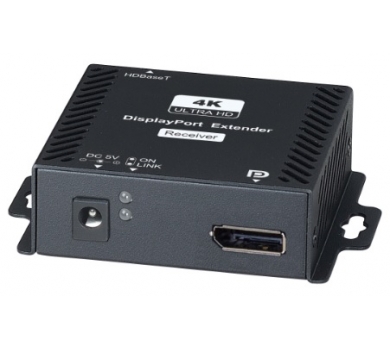

4K DisplayPort CAT5e Extender
- Extends DisplayPort signal over one CAT5e/6 cable
- DP 1.2a. HDCP compliant
- Uncompressed high definition video up to 4K UHD.
Description
| DP02ET | DP02ER | |
| DP Video Support | 1080p @60Hz@12bit 3D, Up to 4096 x 2160 / 30Hz / 4:4:4, 4096 x 2160 / 60Hz / 4:2:0 | |
| HDMI Audio Support | Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA | |
| Distance | 70M (Max) | |
| Input / Output Interface | DisplayPort x 1 | |
| RJ45 Connector | RJ45 x 1 | |
| Power Supply | DC 5V 2A | |
| Power Consumption | Max 5W, Low Power 1.32W | Max 8W, Low Power 1.62W |
| Temperature | Operation: -10 ~ 45°C , Storage: -30 ~ 70°C, Humidity: up to 95% | |
| Dimension | 67 x 95 x 27 (mm) | |
| Weight | 165 g | |
| Certification | CE / FCC / RoHS | |
