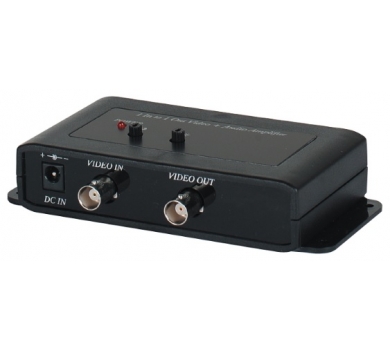

1 Input 1 Output Video Amplifier
- Wide bandwidth, video gain compensation amplification
- Video and Audio level adjustment (CA101A)
- HF compensation
Description
| CA101 | ||
| Video Input / Output | BNC x 1 | |
| Video Input Level | 0.8 ~ 1.2Vp-p, 75 Ohms | |
| Video Output Level | 1Vp-p (Standard), 75 Ohms | |
| Video Bandwidth | 10hz ` 10MHz | |
| Transmission Range | 1000M | |
| Power Supply | DC 12V / 500mA | |
| Power Consumption | 100mA (Max) | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 138 x 76.2 x 32 mm | |
| Weight | 100 g | |
| Certification | CE / FCC / RoHS | |
