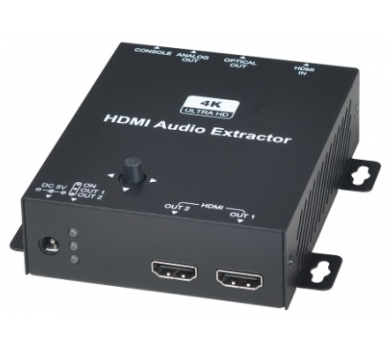

4K HDMI Audio Extractor With Up / Down Scaler 1 in 2 out
- Support HDMI 2.0, HDCP 2.2, 4K@60Hz 4:4:4 18Gbps (6Gbps per color) 3D, HDR.
- Support extracts the 4K HDMI audio and output to multi-channel digital or analog audio signal
Description
| HAE01 | ||
| HDMI Input | HDMI Type A x 1 | |
| HDMI Output | HDMI Type A x 2 | |
| HDMI Video Support | Up to 4096 x 2160 / 60Hz /4:4:4(18Gbps), 3D, HDR | |
| HDMI Audio Support | Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA | |
| Digital Audio Connector | TOSLINK Type x 1 | |
| Analog Audio Connector | 3.5mm Phone Jack x 1 | |
| Firmware updated Interface | DB9(F)/3.5mm STEREO PHONE JACK | |
| Power Supply | Regulated DC 5V 1A | |
| Power Consumption | 4W | |
| Temperature | Operation: -10 ~ 45°C , Storage: -30 ~ 70°C, Humidity: up to 95% | |
| Dimension / Weight | ||
| Certification | CE / FCC / RoHS | |
