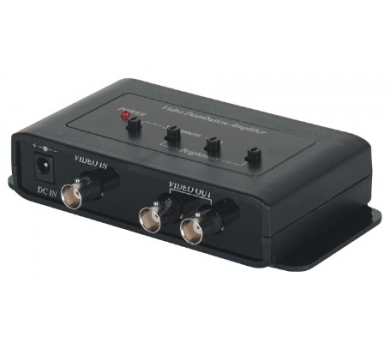

1 Input 2 Output Video Distributor Amplifier
- 1 Input to 2 Output Video Distribution Amplifier (power adapter included)
Description
| CD102A | ||
| Video Input Channel | BNC x 1 | |
| Video Output Channel | BNC x 2 | |
| Video Input Level | 0.8 ~ 1.2Vp-p, 75 Ohms | |
| Video Output Level | 1Vp-p (standard), 75 Ohms | |
| Video Bandwidth | 10hz - 10MHz | |
| Power Supply | DC 12V / 500mA | |
| Power Consumption | 100 mA | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 138 x 76.2 x 32 mm | |
| Weight | 110 g | |
| Certification | CE / FCC / RoHS | |
