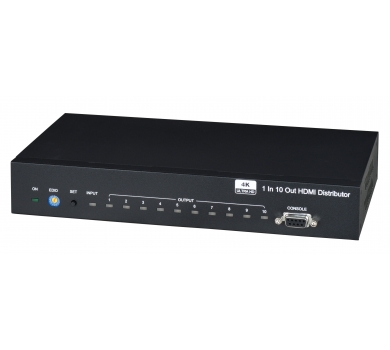

4K 60Hz 1 Input 10 Output Distribution Amplifier
- Connects up to 10 HDMI displays at the same time from and HDMI soure
- Support 4K@60Hz 4:4:4 18Gbps, 1080p60Hz 16bit, 3D, HDR
- Built in EDID copy
Description
| HD10-4K6G | ||
| Resolution | 480i/p, 576i/p, 720p, 1080i/p@60Hz , 4K@30Hz, 4K@60Hz (YCbCr 4:4:4) | |
| HDMI Connector | HDMI Type A x 11 | |
| Console | RS232 x 1 (firmware update) | |
| Rotarty Switch | BCD (Rotary SW 0-F) Switch x 1 | |
| Function button | Button x 1 | |
| Power Supply | DC 12V 1.5A | |
| Power Consumption | 800mA (Max) | |
| Temperature | Operation: 0 ~ 60°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 253 x 139 x 40 | |
| Weight g | 850 | |
| Certification | CE / FCC / RoHS | |
