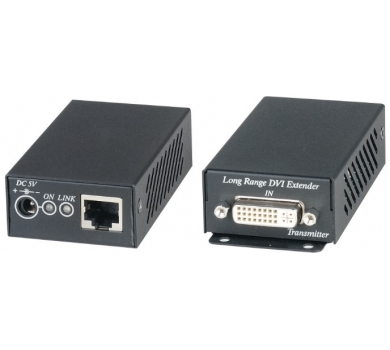

DVI CAT5 Extra Long Range Extender over Single CAT5 Cable
- Extends DVI Signal over one CAT5 / 5e / 6 cable
- Uncompressed high definition video up to 1920x1200@60Hz and 3D capable
- Max. Data Rate- 10.2 Gbps
Description
| DE02ET | DE02ER | |
| Video Resolution | Up to 1920 x 1200 / 60Hz | |
| Distance | 100M (Max) | |
| Distance | DVI-I x 1 (29 Pin) Digital Only | |
| Input / Output Interface | RJ45 x 1 | |
| Power Consumption | Max 3W, Low Power 0.8W | Max 6W, Low Power 1W |
| Power Supply | DC 5V 2A | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 49.2 x 92 x 25 (mm) | |
| Weight | 140 g | 150 g |
| Certification | CE / FCC / RoHS | |
