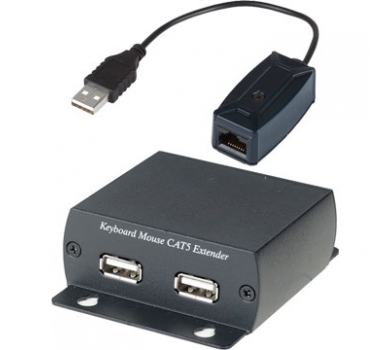

USB Keyboard Mouse CAT5 Extender
- Keyboard Mouse CAT5 Extender - USB Interface
- Extend USB keyboard and mouse via one CAT5e UTP cable
- Transmission range up to 600M
Description
| KM03T | KM03R | |
| Input | USB Keyboard/mouse | |
| Distance | 600M (Max) | |
| Cable | CAT5e cable | |
| RJ45 Pin Configuration | Pins 1 (Clock 1), Pins 2 (Data 1), Pins 7 (Clock 2), Pins 8 (Data 2) | |
| Power Consumption | passive, no power | 500mA |
| Power Supply | DC 5V / 1Amp | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 53 x 25 x 20.7 + 180mm cable | 67 x 87 x 27 |
| Weight g | 26 | 130 |
| Certification | CE / FCC / RoHS | |
