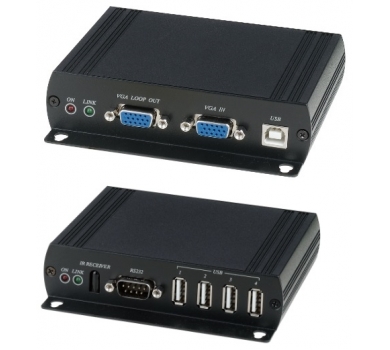

VGA & USB with Stereo Audio, RS232 CAT5 Extender
- Extend VGA, Stereo Audio, RS232, IR & USB signals over one CAT5E/CAT6 cable
- Support up to 1920 x 1200@60Hz
- Transmission range up to 120M over CAT5e, 140M over CAT6
Description
| VH04T | VKM04R | |
| Input Signal | Up to 1920 x 1200@60Hz | |
| Transmission Distance | CAT5e: 120M, CAT6: 140M (Max) | |
| Vido Input Signals | RGB Analog (0.7 Vp-p 75Ω) Sync Signal H/V Separated (TTL) | |
| VGA Connector | DB15 Female x 2 | DB15 Female x 1 |
| USB Connector | USB B-Type x 1 | USB A-Type x 4 |
| RS232 Connector | DB9 (Female) x 1 | DB9 (Male) x 1 |
| Audio Connector | 3.5mm Phone Jack x 1 | |
| Link Connector | RJ45 x 1 | |
| Power Consumption | 1.1Amp | |
| Power Supply | DC 5V / 2Amp | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Weight g | 335 | 330 |
| Certification | CE / FCC / RoHS | |
