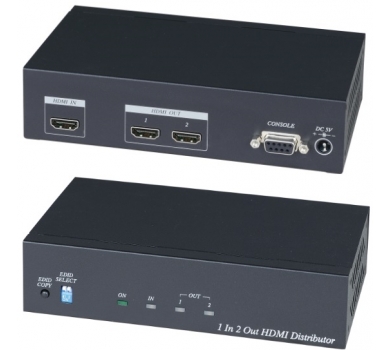

1 Input 2 Output 4K2K HDMI Distribution Amplifier
- Connects up to 2 HDMi displays at the same time from a digital video source
- Support up to 3D, 4Kx2K UHD, 12-Bit deep color
- DVI 1.0 compliance
Description
| HD02-4K | HD04-4K | |
| Resolution | 480p, 576i, 720i, 1080i, 1080p @ 60Hz , 4K x 2K@30Hz | |
| HDMI Connector | Input: 1 port (HDMI Type A), Output: 2 port (HDMI Type A) | Input: 1 port (HDMI Type A), Output: 4 port (HDMI Type A) |
| Console | RS232 x 1 (use for firmware update) | |
| DIP Switch | 25-340Mhz, support up to 12-Bit deep color | |
| Function button | Button x 1 | |
| Power Supply | DC 5V 2AMP | |
| Temperature | Operation: 0 ~ 60°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 167 x 100.5 x 40 | |
| Weight g | 445 | 455 |
| Certification | CE / FCC / RoHS | |
