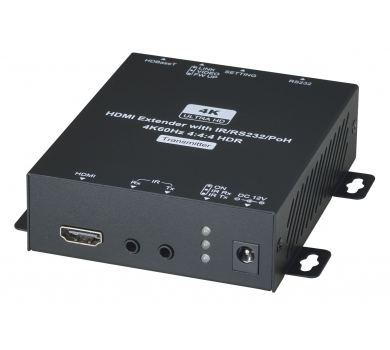

4K 60Hz 4:4:4 HDMI with IR / RS232 / PoH CAT5e Extender
- HDMI 2.0, HDCP 2.2 / 1.4 & DVI Compliant
- Extends HDMI 4K UHD, RS232 and IR signal over one CAT5e / 6 cable
- Support 1080p@60Hz@48bits at 70M, 4K@60hz at 40M
Description
| HE02EIXPT | HE02EIXPR | |
| HDMI Input Connector | HDMI Type A x 1 | X |
| HDMI Output Connector | X | HDMI Type A x 1 |
| HDMI Video Support | 1080p @ 60Hz @ 48bits, 3D, 4K / 60Hz / 4:4:4 | |
| HDMI Audio Support | Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA | |
| HDBaseT Connector | RJ45 x 1 | |
| HDBaseT Distance | 70M | |
| RS-232 Connector | DB9 Female | DB9 Male |
| RS-232 Baud Rate | 115200 bps / full duplex | |
| IR Input / Output | 3.5mm Phone Jack x 2 | |
| IR Carrier Frequency / Angle / Distance | 30~60KHz / T ：± 10° / R : ± 55° / 5M Bi-directional | |
| Power Consumption | 5.4W | 7.32W |
| Lower Power mode: Power Consumption | 2W | 1.8W |
| Power Supply | DC 12V / 1.5A | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 109.6 x 109.5 x 30 mm | |
| Weight | 260 g | 275 g |
| Certification | CE / FCC / RoHS | |
