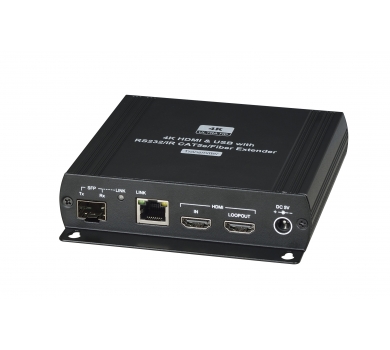

HDMI & USB / Audio / RS232 / IR CAT5e Extender
- Transmission range up to 140M over CAT6, 120M over CAT5e
- HDMI video resolutions up to 4K@30Hz, 1080p Full HD and 1920 x 1200@60Hz
- HDMI 1.4 and HDCP 1.4 compliant
Description
| HKM01T-4K | HKM01R-4K | |
| Support Resolution | Up to 4K UHD 4:4:4 @30Hz | |
| Transmission Distance | CAT5e : 120M / CAT.6 : 140 (Max) | |
| HDMI Connector | HDMI Type A x 2 | HDMI Type A x 1 |
| USB Connector | USB Type B x 1 | USB Type A x 4 |
| RS232 Connector | DB9 (Female) x 1 | DB9 (Male) x 1 |
| RS232 not support hardware handshake | ||
| Link Connector | RJ45 x 1 | |
| Analog Audio connector | Input: Line In, 3.5mm Stereo Phone Jack Output: 3.5mm Stereo Phone Jack (Ext) | Input: Mic In, 3.5mm Mono Phone Jack Output: 3.5mm Stereo Phone Jack (Ext) |
| IR connector | 3.5mm Phone Jack x 1 | |
| IR Receiver | X | 20-60Khz / ±45° / 5M 3.5mm Stereo Phone Jack (Ext) |
| IR Emitter | 20-60Khz / ±45° / 5M 3.5mm Stereo Phone Jack (Ext) | X |
| Fiber | SFP | |
| Power Supply | DC 5V 2A | |
| Power Consumption | 1200mA (Max.) | 400mA (Max. No USB Device) |
| Temperature | Operation: -20 ~ 60°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 125 x 140 x 30 | |
| Weight g | 380 | |
| Certification | CE / FCC / RoHS | |
