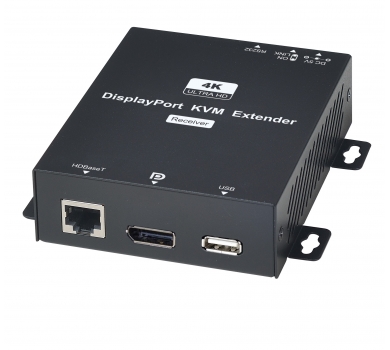

DisplayPort KVM with USB / RS232 CAT5e Extender
- Extends DisplayPort signal with USB/RS232 over one CAT5e/6 cable
- DP 1.2a. HDCP compliant
- Uncompressed high definition video up to 4K UHD
Description
| DP02UT | DP02UR | |
| DP Input Interface | 1 | X |
| DP Output Interface | X | 1 |
| HDMI Video Support | 1080p @60Hz@48bit 3D, 4K / 30Hz / 4:4:4 | |
| HDMI Audio Support | Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA | |
| HDBaseT Connector | RJ45 x 1 | |
| HDBaseT Distance | 4K 100M, 1080P 150M | |
| RS-232 Interface | DB9(F)/3.5mm STEREO PHONE JACK | DB9(M)/3.5mm STEREO PHONE JACK |
| RS-232 Baud Rate | 115200 bps / full duplex | |
| USB input / output | USB Type B x 1 | USB Type A x 1 |
| Power Consumption | Max: 5W | Max: 6W |
| Power Supply | DC 5V 2A | |
| Power Adpater | Regulated DC 5V / 2A | |
| Temperature | Operation: -10 ~ 45°C , Storage: -30 ~ 70°C, Humidity: up to 95% | |
| Dimension | 109.6 x 109.4 x 30 (mm) | |
| Weight | 265 g | |
| Certification | CE / FCC / RoHS | |
