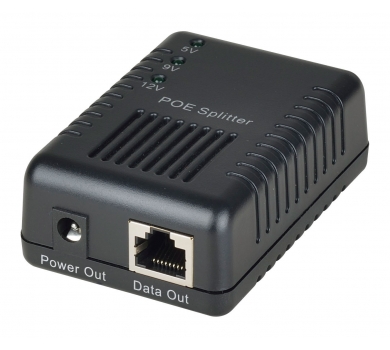

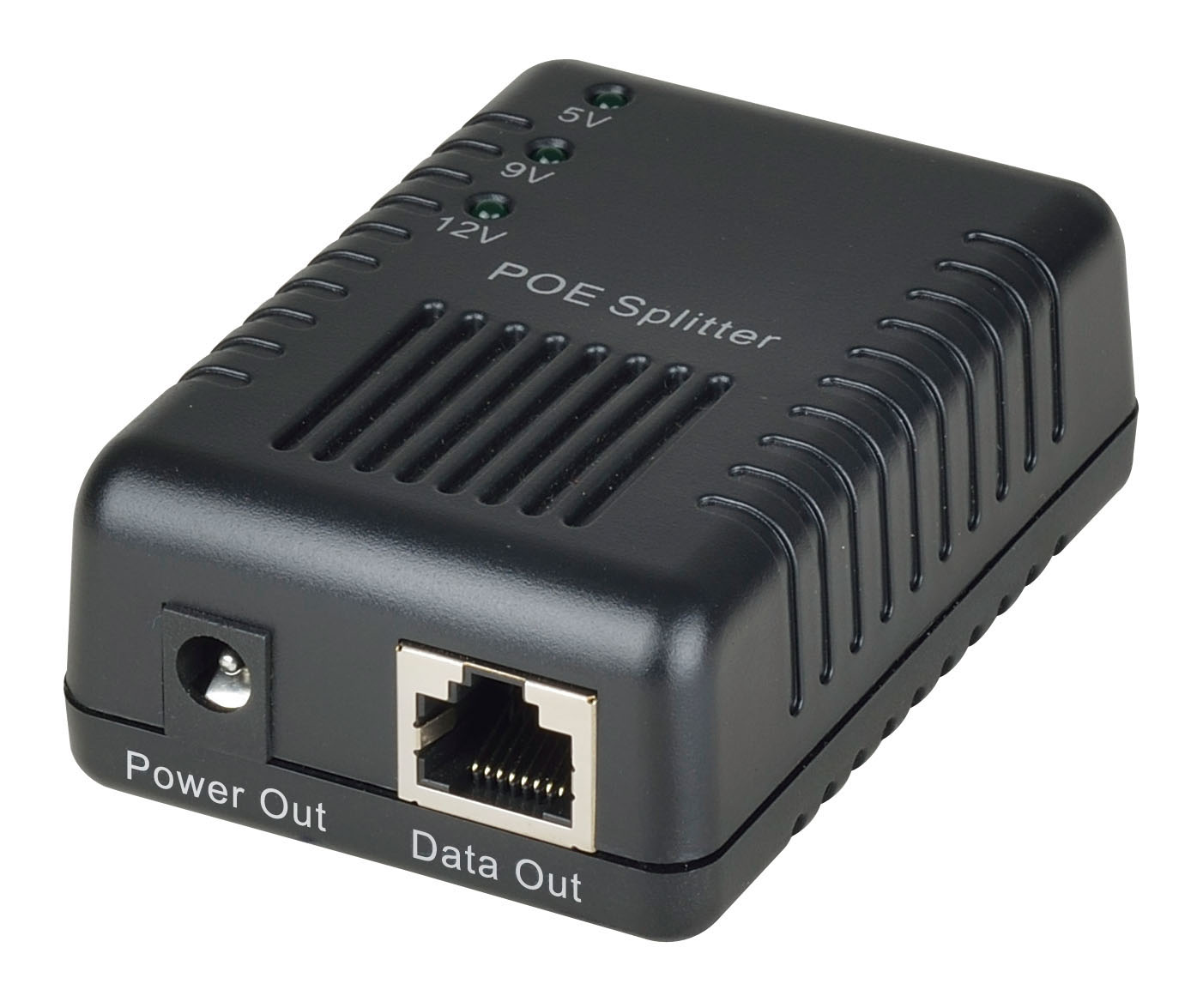

PoE Splitter
- Network device at 10/100Mbps speed
- Auto detects PoE terminals and supplies inline power
- Supplies power up to 10W
Description
| IP05IE | ||
| Power & Data Input/Output | RJ-45 | |
| Data Link | Pin 1,2, 3,6 | |
| Power Link | Pin 4,5(+), 7,8(-) | |
| Output Power Voltage | DC 52V MAX | |
| PoE Port Power | 19W MAX | |
| Input Power AC Input Voltage | 100 ~ 240 VAC | |
| Requirements AC Input Current | 0.8A @100 ~ 240 VAC | |
| AC Frequency | 50 to 60 Hz | |
| Transmission Range | 100M MAX | |
| LED Indication | AC Power: Green | |
| PoE | IEEE 802.3af | |
| Temperature | Operation: -10 to 45°C, Storage: -20 to 85°C, Humidity: up to 95% | |
| Dimension mm | 87.9 x 51.3 x 166 | |
| Weight g | 350 | |
| Certification | CE / FCC / RoHS | |
| IP05SE | ||
| Power & Data Input | RJ-45 | |
| Power & Data Output | DC JACK , RJ-45 | |
| Data Link | Pin 1,2, 3,6 | |
| Power Link | Pin 1/2(+), 3/6(+) or 4/5(+), 7/8(-) | |
| PoE Port Power | 48VDC / 0.3A | |
| Output Power Voltage | 5VDC (2A), 9VDC (1.1A), 12VDC (0.85A) | |
| Transmission Range | 100M MAX | |
| LED Indication | AC Power: Green | |
| PoE | IEEE 802.3af | |
| Temperature | Operation: 0 to 40°C, Storage: 0 to 65°C, Humidity: up to 95% | |
| Dimension mm | 80 x 55 x 31 | |
| Weight g | 76 | |
| Certification | CE / FCC / RoHS | |
