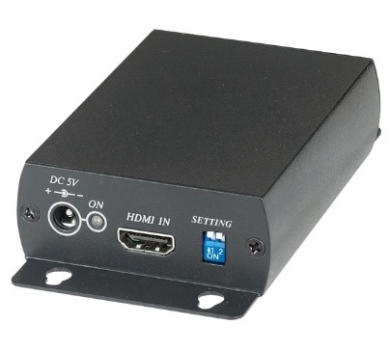

HDMI to HD-SDI Converter
- To send HDMI signal convert to 3G/HD/SDI signal
- Support audio LPCM 7.1 channel
- Support SDI, HD-SDI, 3G-SDI
Description
| SDI02 | ||
| SDI Standard / Protocol | SDI (SMTP 259M), HD-SDI (SMTP 292M), 3G-SDI (SMTP 424M) | |
| Resolution | NTSC (480i), PAL (576i), 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/29.97/30/50/59.94/60Hz | |
| Audio | LPCM 8 Channels, 48Khz, 16 / 20 / 24Bit | |
| HDMI Output Connector | HDMI Type A | |
| SDI output connector | BNC 75Ω | |
| Power Consumption | 850mA (Max) | |
| Power Supply | Switching DC 5V / 1AMP | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension mm | 67 x 110 x 27 | |
| Weight g | 200 | |
| Certification | CE / FCC / RoHS | |
