Outdoor PoE Surge Protector
Back to list

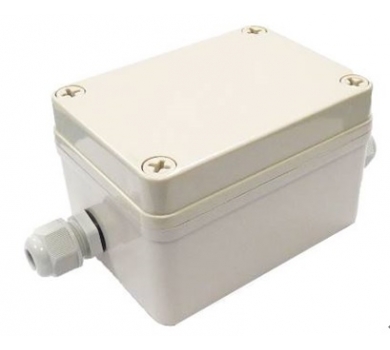

Outdoor PoE Surge Protector

  • Performs a different function than grounding requirements
  • Protects equipment form high voltage surges from nearby lightning strikes
  • RJ45 Jack to RJ45 Jack
Description
SP006PHO
Input/Output Interface  RJ45 x 2
Pass Through Data Rates 10 / 100 / 1000 Mbps
Response time  < 0.7 ns
Maximum discharge
current / voltage:
10KA(8/20 us), 20KV(8/20 us)
ESD Protection  15KV (Air) / 8KV (Contact
Operating Voltage 60V
Waterproof  IP66
Temp. Operation: -40℃ ~ 70℃, Storage: -40℃ ~ 90℃
Humidity  up to 95%
Material  ABS
Dimension  80x158x45 mm
