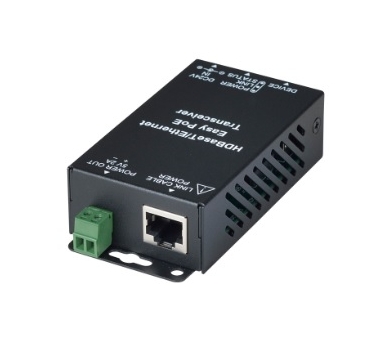

HDBaseT / Ethernet Easy PoE Transmission Kit
Back to list

HDBaseT / Ethernet Easy PoE Transmission Kit

  • EP01H EP01HI DC24V / 1.5A Power Adaptor
  • Perfect solution to send power for non-POE HDBaseT or Ethernet devices
Description
  EP01H EP01HI
Link Interface DC JACK , DC24V 1.25A
Power Output  Terminal Block, DC5V 2A (Max) Terminal Block, DC5V 2A (Max)
Isolation
Support Device  HDBaseT, 10M / 100M / 1000 Mbps
LED Power, Ethernet, Status
Temperature   Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95%
Dimension (mm) 49.2 x 93 x 25  49.2 x 93 x 25
Weight (g) 140  140
Certification  CE / FCC / RoHS
