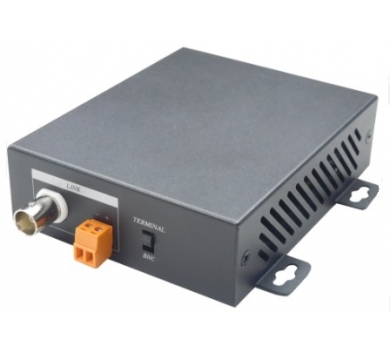

PoE Extender over Coax / Two Wire
- Extend POE signal up to 600M, Ethernet or any TCP/IP devices up to 1000M
- Support 10/100 Mbps transmission rate
- Provides DC12V 1Amp power to camera
Description
| IP03PT | IP03PR | |
| RJ45 Interface | Data Transmission / POE output | Data Transmission / POE Input |
| Power, Data Input / Output | Slide switch: BNC or terminal block | |
| Distance | Ethernet: 1000M, PoE: 600M (Max) based on cables | |
| Power Input | Terminal Block orange color x 1 | Terminal Block black color x 1 |
| Input Voltage | PoE injector / Switch 802.3at / af PoE or DC 48V / DC56V power adapter | |
| Power Output | Terminal Block green color x 1 | Terminal Block orange color x 1 |
| Output Voltage | x | DC12V |
| LED Indication | Power, POE, Ethernet, Status | |
| Protection | ESD Protection: 30KV, 1KA @ 8/20us | |
| Data Rate (Max) | Uplink: 70Mbps, Downlink: 71Mbps | Uplink: 71Mbps, Downlink: 70Mbps |
| Power Consumption | 2.5W | 3W |
| Temperature | Operation: -10 ~ 65°C , Storage: -20 ~ 70°C, Humidity: up to 95% | |
| Dimension mm | 109.6 x 131.5 x 30 | 109.6 x 131.8 x 30 |
| Weight g | 280 | |
| Certification | CE / FCC / RoHS | |
