Ethernet Extender over Coax / CAT5e
Back to list

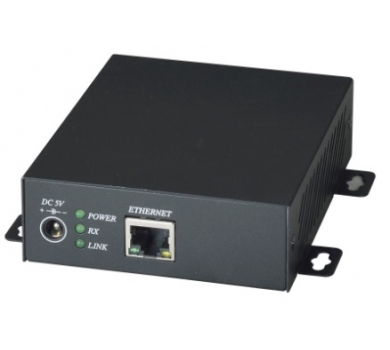

Ethernet Extender over Coax / CAT5e

  • Send and extend IP camera signal or any TCP/IP devices for long range
  • Dual cabling solution: allow to use existing coax cable or over CAT5e/6 cable
  • Distance up to 2KM over coax cable, up to 1.2KM over CAT5e/6 network cable
Description
  IP02D
Link Cable Connector  BNC x 1 (1 Vp-p, 75 Ohm)
Link Cable Distance  2000M (Max) over Coax or 1200M ovr CAT5e/6
Ethernet Connector  RJ45/BNC
Ethernet Cable Distance   100M (Max)
Ethernet Speed  100Mbps
Power Supply  DC 5V / 2A
Signal insertion loss  0.8db @ 42 MHz
Power Consumption   75mA (Max)
Temperature   Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95%
Dimension    mm 109.6 x 121.3 x 30
Weight           g 260
Certification  CE / FCC / RoHS
