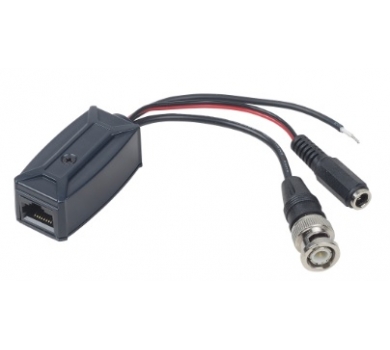

HD-TVI/AHD/HDCVI/CVBS Video & Power, Data Balun RJ45 Connection

  • HD-TVI/AHD/HDCVI/CVBS Video & Power, Data Balun RJ45 Connection
  • Max. transmission distance up to 300M
Description
  TTP111HDPD-RJ45
Video Input / Output
Terminals
BNC x 1 (1 Vp-p, 75 Ohm)
Video Output / Input
Terminals
RJ45 x 1 (100 Ohm)
Power  DC-PLUG
Data Data cable
Bandwidth 50Hz ~ 60MHz (-3dB)
Transmission Distance  1080P: HD-TVI 250M, AHD 250M, HDCVI 300M
4MP / 5MP / 4K: HD-TVI  200M, AHD 200M, HD-CVI 200M
CVBS: 400M
ESD protection  30 KV(Air), 15 KV(Contact) ; IEC 61000-4-2 compliant
EFT protection  40A (5/50ns) ; IEC 61000-4-4 compliant
Lighting protection  2A (8/20μs) ; IEC 61000-4-5 compliant
Surge Protection Attack Time  < 1 nS
Temperature   Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95%
Dimension / Weight 69 x 25 x 20.7 mm + 120mm pigtail cable  / 45g
Certification  CE / FCC / RoHS
