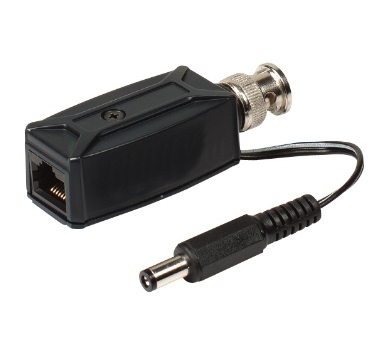

HD-TVI/AHD/HDCVI/CVBS Video & Power Balun
- Transmit HD-CVI / TVI / AHD video and power over one CAT5e cable
Description
| TTP111HDP | ||
| Video Input / Output Terminals | BNC x 1 ( 1 Vp-p, 75 Ohm) | |
| Video Output / Input Terminals | RJ45 x 1 (100 Ohm) | |
| Power | DC-PLUG | |
| Bandwidth | 50Hz ~ 60MHz (-3dB) | |
| Transmission Distance | 1080P: HD-TVI 250M, AHD 250M, HDCVI 300M 4MP / 5MP / 4K: HD-TVI 200M, AHD 200M, HD-CVI 200M CVBS: 400M | |
| ESD protection | 30 KV (Air), 15KV (Contact) ; IEC 61000-4-2 compliant | |
| EFT protection | 40A (5/50ns) ; IEC 61000-4-4 compliant | |
| Lightning protection | 2A (8/20μs) ; IEC 61000-4-5 compliant | |
| Surge Protection Attack Time | <1 nS | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 69 x 25 x 20.7 + 140mm power cord | |
| Weight | 37 g | |
| Certification | CE / FCC / RoHS | |
