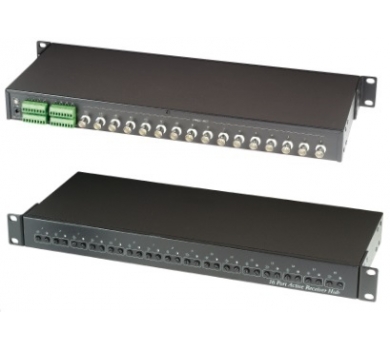

16 Port Active Receiver Hub In 1U Rack Mounting Panel
- 16 Port UTP Active Receiver (power adapter included)
- Easy setting with 2 adjustments for color gain and brightness
Description
| TPA016 | ||
| Video Input | 8 pin removable terminal block x 4 | |
| Video Output | BNC x 16 (1 Vp-p, 75 Ohms) | |
| Recommend Cable | CAT5 UTP cable (24 AWG) | |
| Power Supply | DC 12V 1A | |
| Power Consumption | 380mA | |
| Temperature | Operation: 0 ~ 55°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Dimension | 483 x 184.5 x 44 mm (1U) | |
| Weight | 2360 g | |
| Material | Metal Black | |
| Certification | CE / FCC / RoHS | |
