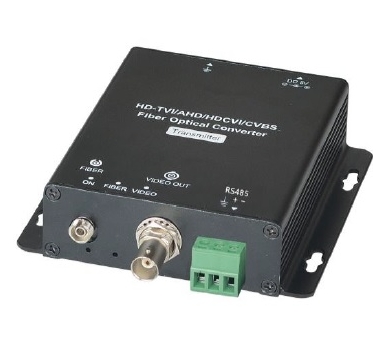

HD-TVI / AHD / HD-CVI / CVBS with RS485 Fiber Extender
- Digital and non-compression coding technology
- Support HD-TVI/AHD/HDCVI/CVBS and RS485 data signal over fiber optical cable
- Working distance up to 20KM
Description
| HD401FT | HD401FR | |
| Video Format | HD-TVI / AHD / HDCVI / CVBS | |
| Video Connector | BNC 50Mhz 75Ω | |
| Fiber Port | FC, single fiber, single mode | |
| Distance | 0-20Km | |
| Input / Output Wavelength | TX1310, RX1550nm | TX1550, RX1310nm |
| Input / Output Level | > 500mVp-p | 1Vp-p |
| TX Input Return Loss | >15dB | |
| Input / Output Impedance | 75Ω | |
| Rx up / down time | <0.8ns | |
| Rx Max. Jitter | <0.2UI | |
| Video Capture Bandwith | 8bie | |
| Baud Rate | 1200-9600bps | |
| BER | ＜10-9 | |
| Operation Mode | Half Duplex | |
| Power | DC5V 1A | DC5V 1A |
| Power Consumption | ≤5W | ≤5W |
| Temperature | Operation: -40 ~ 75°C , Storage: -20 ~ 85°C, Humidity: up to 95% | |
| Certification | CE / FCC / RoHS | |
